SAUNA CABIN

Click on image for better view.

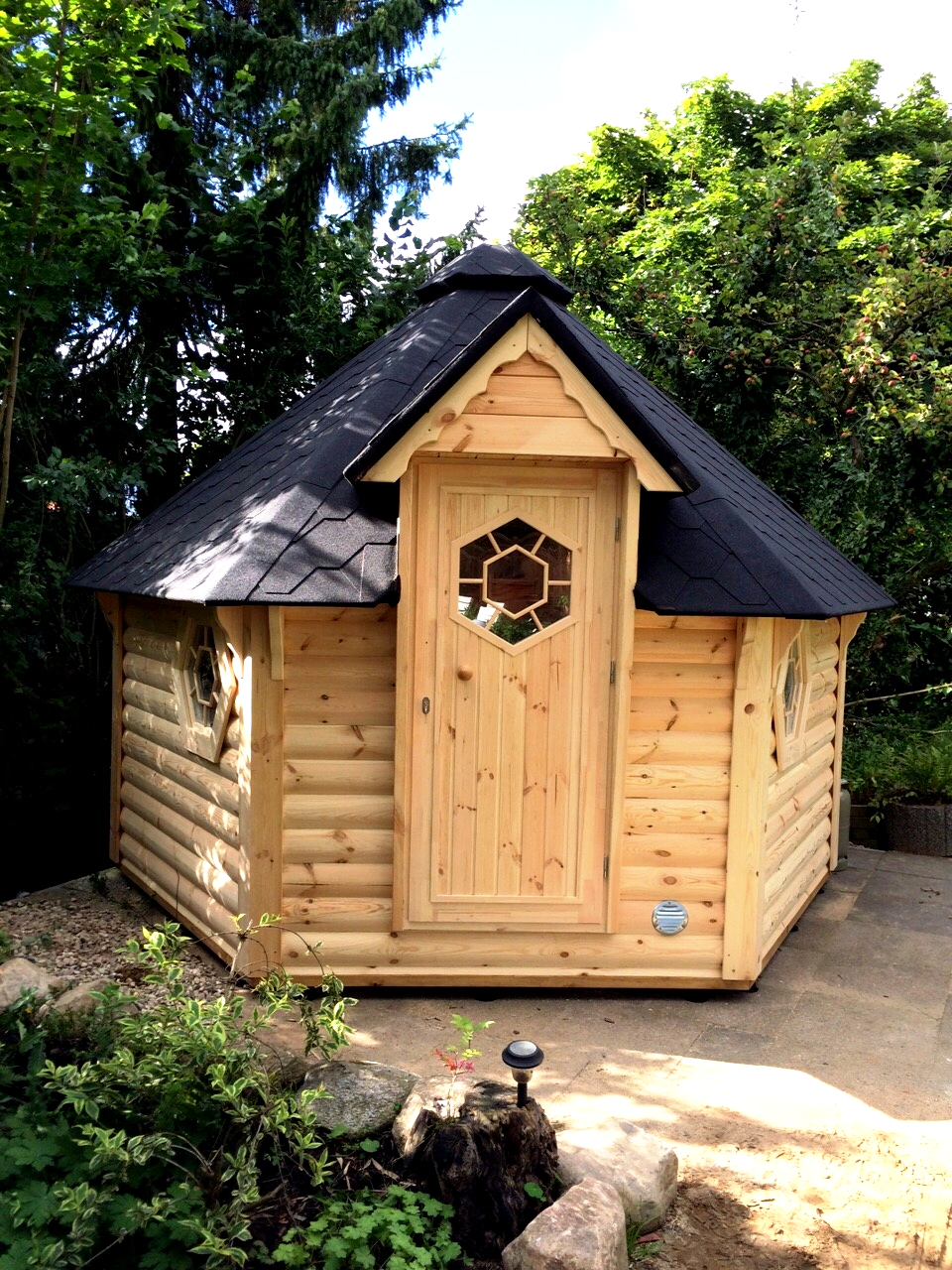

Sauna Cabin 4.5

Description

  • ​6 Corner sauna cabin.

  • 6 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 1 Double-glazed hexagonal window.

  • Lockable front door with hexagonal window.

  • Inside benches and heat- resistant plates for a heater or stove.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 2-4

Size: 4.5 m²

Diameter: 2630 mm

Wall height: 1460 mm

Ridge height: 2730 mm

Door size: 780 x 1760 mm

Window size: 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/5

Click on image for better view.

Sauna Cabin 7.0

Description

  • 6 Corner sauna cabin.

  • ​6 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 2 Double-glazed windows.

  • Lockable front door with hexagonal window.

  • Inside benches and heat- resistant plates for a heater or stove.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 8-10

Size: 7.0 m²

Diameter: 3280 mm

Wall height: 1460 mm

Ridge height: 3360 mm

Door size: 780 x 1760 mm

Window size: 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/4

Click on image for better view.

Sauna Cabin 9.2

Description

  • 6 Corner sauna cabin.

  • ​6 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 2 Double-glazed windows.

  • Lockable front door with hexagonal window.

  • Inside benches and heat- resistant plates for a heater or stove.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 10-12

Size: 9.2 m²

Diameter: 3770 mm

Wall height: 1460 mm

Ridge height: 3510 mm

Door size: 780 x 1760 mm

Window size: 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/6

Click on image for better view.

Sauna Cabin 9.2

with Changing Room

Description

  • ​6 Corner sauna cabin.

  • 6 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 2 Double-glazed windows.

  • Lockable front door with hexagonal window.

  • Interior tempered tinted glass door partition.

  • 4 benches in the sauna room and 1 set bench in changing room.

  • Heat- resistant plates for a heater or stove.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 5-7

Size: 9.2 m²

Diameter: 3770 mm

Wall height: 1460 mm

Ridge height: 3510 mm

Door size: 780 x 1760 mm

Window size: 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/3

Click on image for better view.

Grill Cabin 9.2

with 2.5m Sauna Extension

Description

  • ​6 Corner grill cabin with Sauna room in extension..

  • 6 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 2 Double-glazed windows in BBQ room (1 openable).

  • 1 small hexagonal window in sauna room.

  • Lockable front door with hexagon window.

  • Interior tempered tinted glass door partition.

  • 4 benches with cushions in the BBQ room (2 extendable for sleeping)  and 1 bench in sauna room.

  • Heat- resistant plates for a heater or stove.

  • Standard BBQ Set with extendable chimney.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 9-12

Size: 9.2 m² + 3.57 m² extension

Diameter: 3770 mm

Wall height: 1460 mm

Ridge height: 3510 mm

Door size: 780 x 1760 mm

Window size: 880 x 510 mm & small window 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/7

Click on image for better view.

Sauna with Grill Cabin 16.5

Description

  • ​8 Corner cabin divided into two rooms, sauna room and BBQ room.

  • 8 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 2 Double-glazed windows in BBQ room (1 openable).

  • 1 small hexagonal window in sauna room.

  • Interior tempered tinted glass door partitin.

  • Lockable front door with hexagon window.

  • 3 long and 2 short benches with cushions in BBQ room, and 1 set bench in sauna room.

  • Heat- resistant plates for a heater or stove.

  • Standard BBQ Set with extendable chimney.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 8-12

Size: 16.5 m²

Diameter: 4900 mm

Wall height: 1460 mm

Ridge height: 3810 mm

Door size: 780 x 1760 mm

Window size: 880 x 510 mm & small window 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm

1/2

Click on image for better view.

Grill Cabin 16.5

with 2.5m Sauna Extension

Description

  • ​8 Corner cabin divided into two rooms, sauna room and BBQ room.

  • 8 Straight walls with floor panels.

  • Insulated roof covered with bitumen shingles, available in red, green, black or grey.

  • 4 Double-glazed windows in BBQ room (2 openable).

  • 1 small hexagonal window in sauna room.

  • Interior tempered tinted glass door partition.

  • Lockable front door with hexagon window.

  • 6 benches with cushions in BBQ room (2 extendable for sleeping) and 1 set bench in sauna room.

  • Heat- resistant plates for a heater or stove.

  • Standard BBQ Set with extendable chimney.

Note: Heater is excluded

Specification

Timber: Pinewood

People: 12-18

Size: 16.5 m² + 3.57 m² extension

Diameter: 4900 mm

Wall height: 1460 mm

Ridge height: 3810 mm

Door size: 780 x 1760 mm

Window size: 880 x 510 mm & small window 512 x 442 mm

Thickness

Exterior cladded roof: 18 mm.

Interior cladded roof: 18 mm.

Stone wool insulation: 45 mm
