GRILL CABIN

1/4

Click on the image for a  better view.

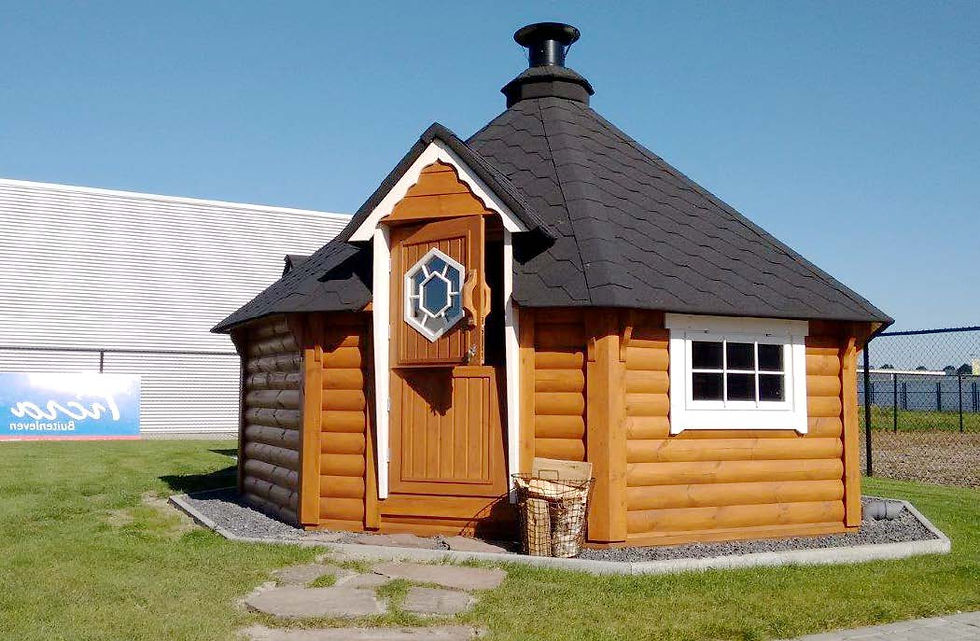

Grill Cabin 4.5

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 6 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 3 Double-glazed windows (1 openable).

  • Lockable door with hexagonal window.

  • 3 Inside benches with Cushions.

Specification

Timber: Pinewood

People: 3-5

Size: 4.5 m²

Diameter: 2630 mm

Wall height: 1200 mm

Ridge height: 2730 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/4

Click on image for better view.

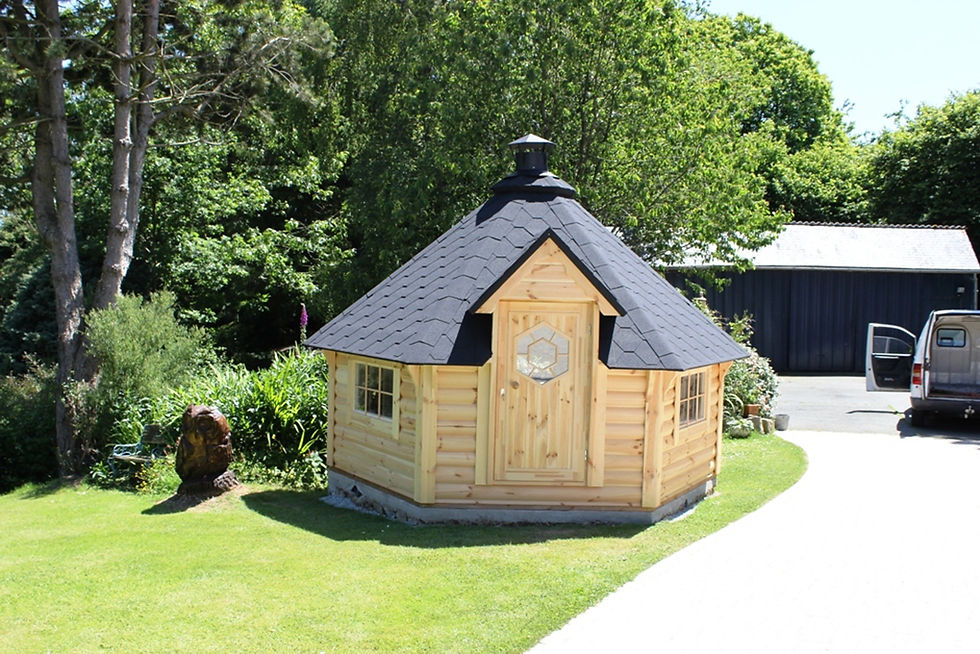

Grill Cabin 7.0

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 6 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 3 Double-glazed windows (1 openable).

  • Lockable door with hexagonal window.

  • 5 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 10-12

Size: 7.0 m²

Diameter: 3280 mm

Wall height: 1200 mm

Ridge height: 3100 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/5

Click on image for better view.

Grill Cabin 9.2

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 6 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 3 Double-glazed windows (1 openable).

  • Lockable door with hexagonal window.

  • 5 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 12-15

Size: 9.2 m²

Diameter: 3770 mm

Wall height: 1200 mm

Ridge height: 3250 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/3

Click on image for better view.

Grill Cabin 6.9

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 8 Straight walls and floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 4 Double-glazed windows (2 openable).

  • Lockable door with hexagonal window.

  • 5 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 5-10

Size: 6.9 m²

Diameter: 3149 mm

Wall height: 1200 mm

Ridge height: 3220 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/4

Click on image for better view.

Grill Cabin 14.9

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 8 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 4 Double-glased windows (2 openable).

  • Lockable door with hexagonal window.

  • 7 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 14-20

Size: 14.9 m²

Diameter: 4591 mm

Wall height: 1200 mm

Ridge height: 3400 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/3

Click on image for better view.

Grill Cabin 16.5

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 8 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 4 Double-glazed windows (2 openable).

  • Lockable door hexagonal window.

  • 7 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 15-21

Size: 16.5 m²

Diameter: 4900 mm

Wall height: 1200 mm

Ridge height: 3550 mm

Door size: 780 x 1500 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

1/5

Click on image for better view.

Grill Cabin 25

Description

  • Standard BBQ Set with table around the grill.

  • Extendable chimney.

  • 8 Straight walls with floor panels.

  • Roof covered with bitumen shingles, available in red, green, black or grey.

  • 4 Double-glazed windows (2 openable).

  • Lockable door with hexagonal window.

  • 7 Inside benches (2 can be extended for sleeping) with Cushions.

Specification

Timber: Pinewood

People: 25-30

Size: 25 m²

Diameter: 5899 mm

Wall height: 1200 mm

Ridge height: 4650 mm

Door size: 780 x 1760 mm

Window size: 880 x 510 mm

Thickness

Roof thickness: 18 mm

Wall thickness: 45 mm

Floor thickness: 18 mm

VISIT US

You can visit our homy showroom by contacting us to arrange the schedule.

07534894999

john@grillcabin.co.uk

Roman Lodge Farm, Lansdown, Bath BA1 9BJ

For price details please contact us.
